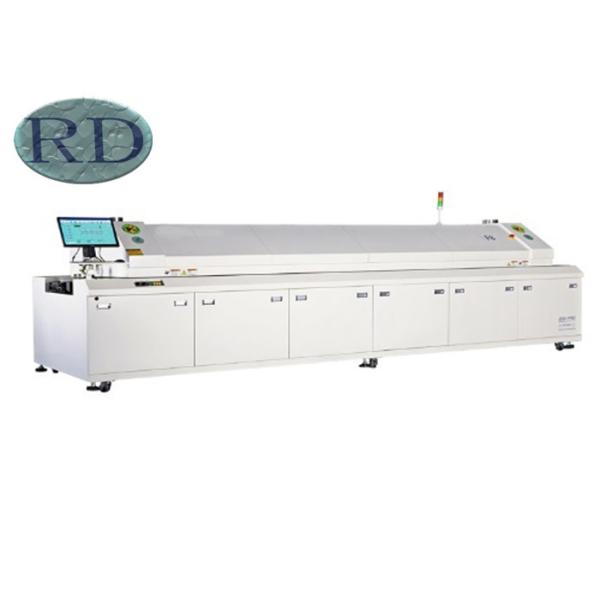

12 zones Dual Rail Nitrogen SMT Reflow Oven KTR-1200D-N

Model Number : chip mounter CONTROLLER 00335522

Place of Origin : shenzhen

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000pcs/days

Delivery Time : 8days

Packaging Details : carton

Heating zones quan. : Top 12, bottom 12

Heating zone length : 4675mm

Weight : APPROX:3360KG

Exhaust capacity : 10㎡/min×2

Contact Now

12 zones Dual Rail Nitrogen SMT Reflow Oven KTR-1200D-N

12 zones Dual Rail Nitrogen SMT Reflow Oven KTR-1200D-N

Model

Control

Heating zones quan.

Cooling zones quan.

Heating zone length

Current plate

Weight

Dimension

Exhaust capacity

Color

Nitrogen system

Full Nitrogen system: Oxygen analyzer added on the N Standard

N2 Consumption: Widening machine (610mm Width): 500-1000ppm at 25-30m3 / hr

Electricity supply

Temp. control rangeRoom temp.～300℃

99KW

Start power

Temp. control method

Consumption powerKW

±1.5℃

3 sections with 3 inverters

All profiles can be saved

Apprx.30minute

High, low temp. alarm

Rail structure

Rail fixed method

Chain

Conveying height

PCB Max. width

Conveying method

Component height

Conveying speed

Conveying direction

Lubrication

Cooling system

Forced air cooling

Heating zonesTop 12,bottom 12(4675mm)can meet the need of the peak lead-free technique.

After cool down by air, PCB temp. is ≤50℃ at the exit.

From the normal temp. to set temp, approximate 30 minutes.

Warm up from two side, save the power and time

Heating zone temp. control accuracy

PCB temp. deviation

Empty→ full load heat balance respond time<span font-size:12pt;"="" style="box-sizing: border-box;">

≤20 s
